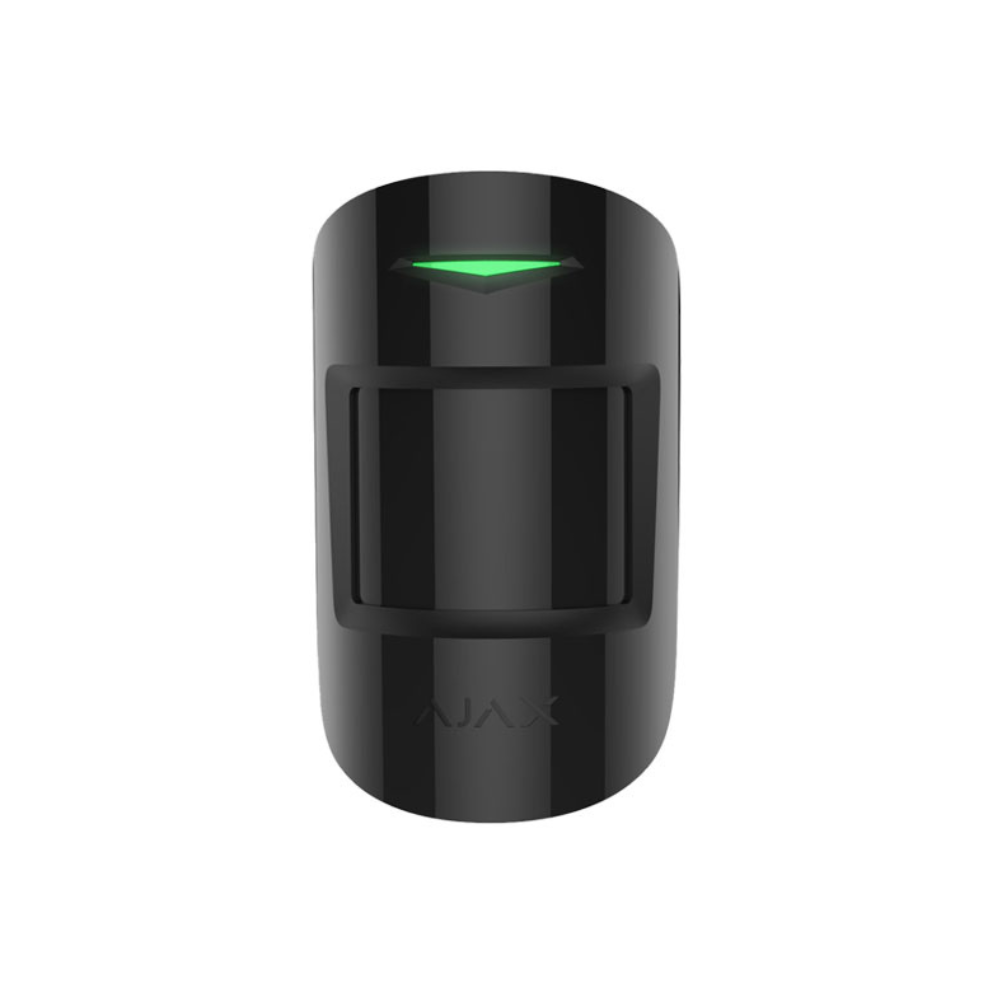

Ajax Motion Protect PIR Black 1938194-09-BL1

Ajax Motion Protect PIR motion detector

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry.

Technical Specifications:

– Classification: Electro-optical radio channel security detector
– Detector Type: Wireless
– Installation: Indoors
– Compatibility: Works with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
– Sensing Element: PIR sensor
– Alarm Signal Delivery Time: 0.15 seconds
– Motion Detection Range: Up to 12 meters
– Detection Angles: Horizontal – 88.5°; Vertical – 80°
– Sensitivity: Adjustable, 3 levels
– Recommended Installation Height: 2.4 meters
– Pet Immunity: Weight – up to 20 kg; Height – up to 50 cm
– Power Supply: CR123A battery, 3 V
– Battery Life: Up to 5 years
– Jeweller Radio Technology:
– Communication Range with Central Unit: Up to 1,700 meters in open space
– Two-way Communication between Devices
– Operating Frequencies: 868.0 – 868.6 MHz
– Self-adjusting RF Output Power: Up to 20 mW
– Block Encryption: AES algorithm
– Device Polling Period: 12 – 300 seconds
– Temperature Sensor: Available
– Operating Temperature Range: From -10°C to +40°C
– Permissible Humidity: Up to 75%
– Anti-sabotage Features:
– Protection Against Fraud
– Jamming Detection
– Tamper-resistant
– Remote Setting and Testing: Available
– Dimensions: 110 × 65 × 50 mm
– Weight: 86 g
