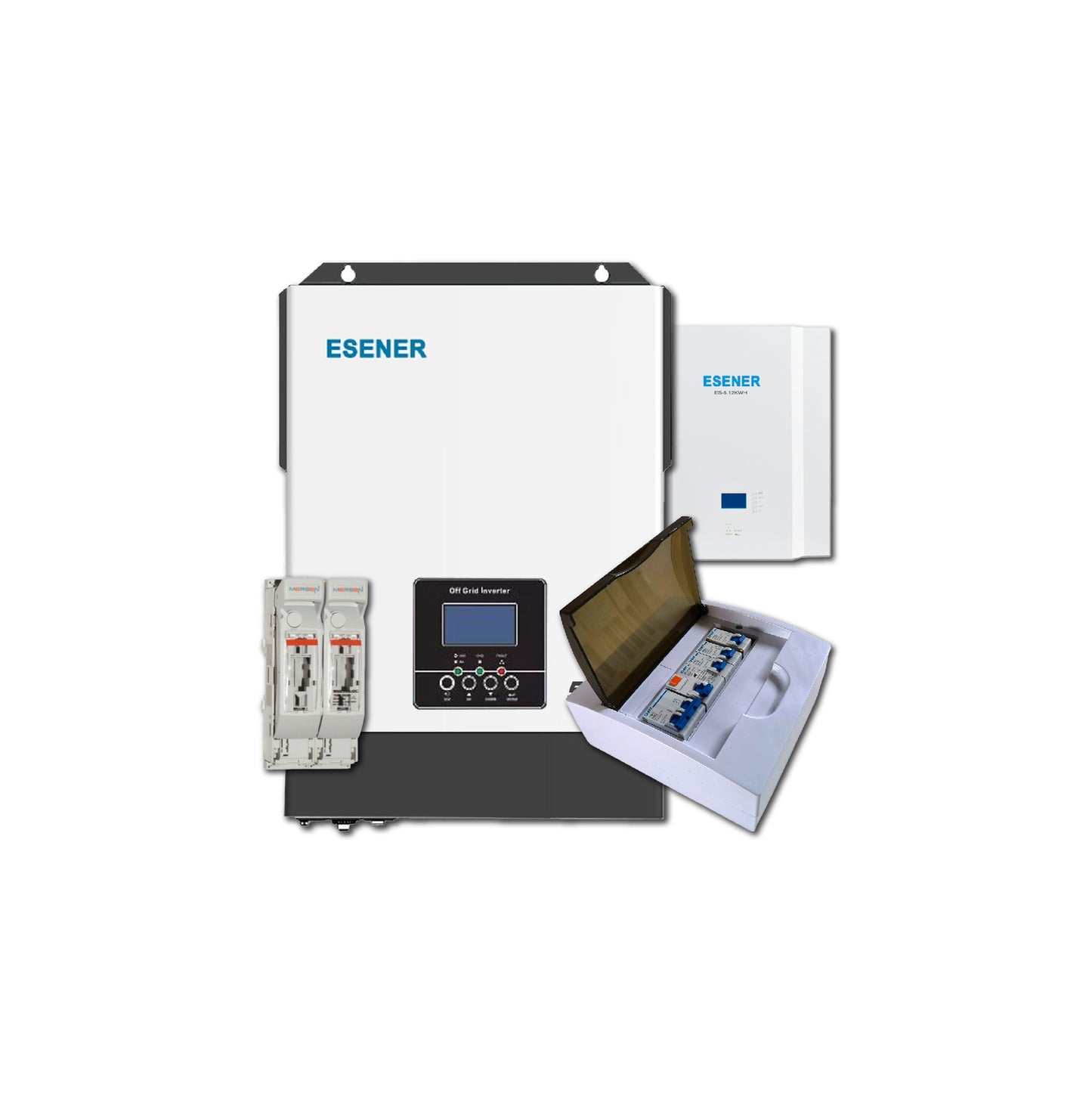

Esener 5.5KW Inverter Kit

The ESENER 5.5kw Inverter is a Pure Sine Wave solar inverter with high PV input voltage range of up tp 500V DC. It has an output power factor 1 and a built in 100A MPPT Solar Controller. It supports multiple output priority: UTL,SOL,SBU,SUB

It has parallel operation with up to 12 units. It supports parallel in single phase/3 phase as well as wireless parallel without extra sharing current cable

The ESENER 51.2V 100Ah is a high quality lithium-ion phosphate battery with a lifecycle of more than 6000 at 80% DOD, and can be used for 10-15 years. The battery offers a low internal resistance with excellent continuous high current discharge performance.

Details

• Advanced BMS with current limiting factor
• CAN Bus, fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)
• Excellent high temperature performance
• High Cycle Life and Service Life
• 1C High Performance Lithium Battery
• High Energy Density and Conversion Efficiency
• Complete with integrated Battery Management System
• Compartible with most inverters and chargers
• Low self-discharge
• Easy wall mount or shelf rack installation
• Heavy duty side handles for easy handling and mounting to the wall
• Built in protection for over-charge, over-discharge & over-temperature

Specifications

• Model: ES-5.12KWH
• Rated Capacity (5HR): 110Ah
• Voltage: 51.2V
• Discharge Cutoff Voltage: 40.0V
• Equalised Charge Voltage: 58.4V
• Maximum Continuous Charging Current: 100A
• Maximum Continuous Discharging Current: 100A
• C. Rating: 1.0C
• Weight: Approx. 46kg
• Display: LCD
• Parallel: Parallel connection up to 15 packs with full communications
• Dimensions (WxDxH): 505mm x 162mm x 543mm
• Ports: 1x CAN Bus, 1x RS-485 Battery Link ports, 2x Parallel Instruction Ports
• Cells:New Li-Ion Prismatic Cells
• Design Life: -/+ 15 Years
• Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DOD
• Certification: CE, UN38.3, IEC, MSDS
• Outer Package Material: White bake lacquer steel case
• Operating Temperature: Charging: 0 to 50°C, Discharging: -10 to 50°C, Storage: -10 to 50°C
• Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
