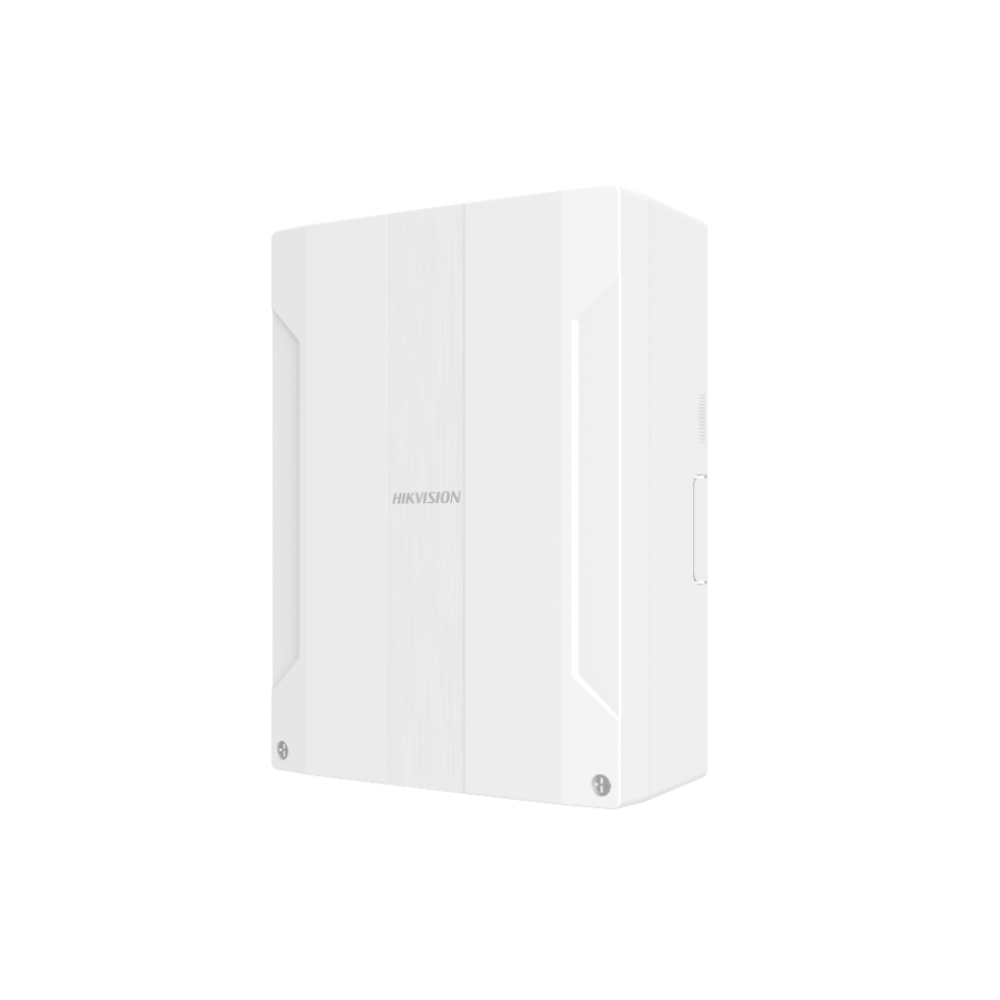

Hikvision AX Pro Multi IO Transmitter

Software Features

• End of Line Resistance

  1k 2.2k 4.7k 8.2k

  NO/NC

Hardware Features

• Serial port – 1
• Battery port – 1, 12 VDC input
• Tamper-Proof – Front and rear
• Power switch – 1
• Alarm input – 16
• Alarm output – 2
• Power Output – 2 (12v, total1A)

Electrical Characteristics

• Battery type

  Compatible with 12v 7 Ah

  150 × 64 × 94 mm

• Power supply – 100-240VAC，30w
• Operation humidity – 10%~90%
• Operation temperature – –10 ~ 40°C

Power Consumption

• Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V)

  220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)

• Battery life span – Up to 36 hours

Wireless Transmission

• RF frequency – 868MHz
• RF method – Two-way communication
• RF modulation – 2GFSK
• RF distance – 1100m

Display

• Indicator3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）

General

• Installation method – Wall Mounting
• Dimension (WxHxD) – 261*199*86.4mm
• Shell material – Plastic
• Color – White

• 975 g (without battery)

  3024g (with battery)
