Hikvision

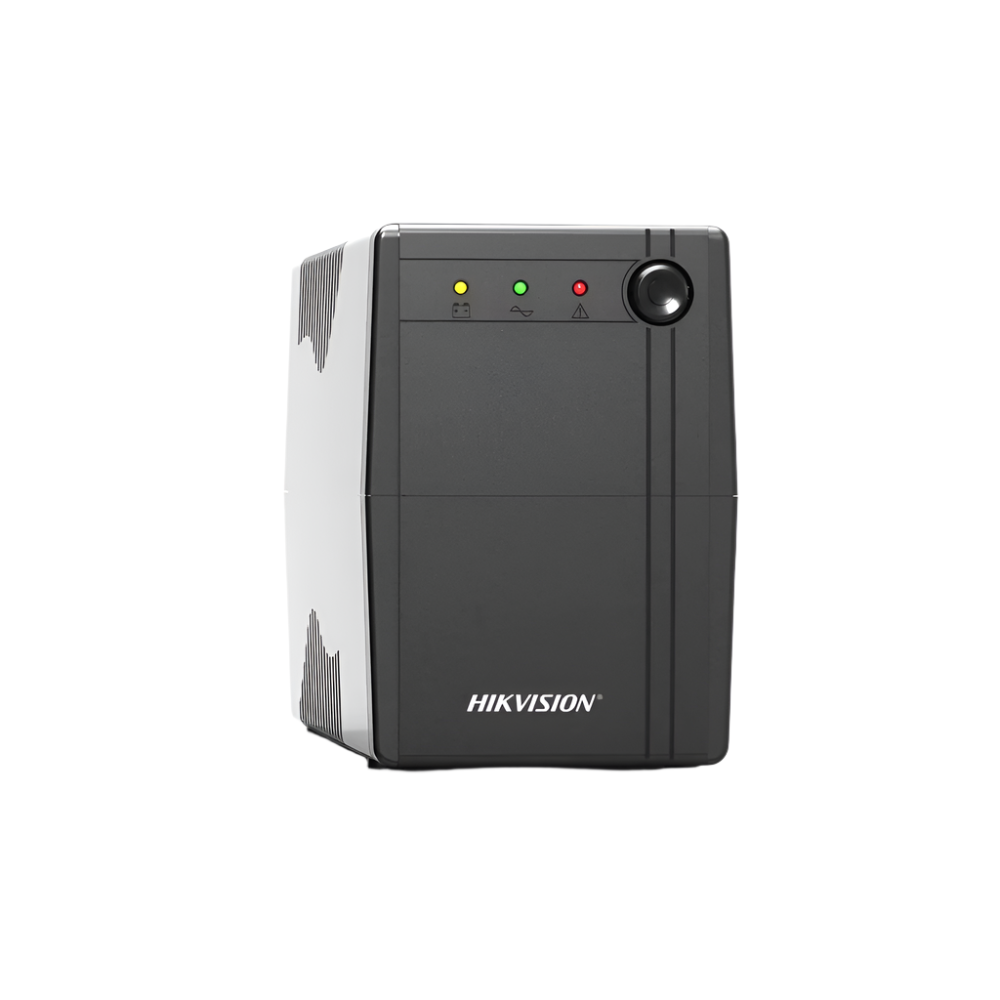

Hikvision Backup Series DS-UPS1000

Hikvision Backup Series DS-UPS1000

Regular price R 1,299.00
Regular price R 1,699.00 Sale price R 1,299.00
Sale Sold out
Shipping calculated at checkout.
  • Power
  • UPS Capacity1000 VA / 600 W
  • Input
  • Input Voltage Range140 VAC to 290 VAC
  • Input Frequency50/60 Hz self-adaptive
  • Plug TypeAU TYPE I;TYPE H;Type B (NEMA 5-15);UK TYPE G;TYPE L (10A);Schuko
  • Output
  • Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
  • Output Voltage Range210 VAC to 235 VAC
  • Transfer Time≤ 10 ms
  • WaveformPWM
  • Outlet TypeAU TYPE I;TYPE H;Type B (NEMA 5-15);Universal;TYPE L (10/16A)
  • Outlet Number2;Battery outlet*4 & Bypass*2
  • Battery
  • Battery Type12 V/9 Ah, lead-acid battery
  • Recharge Time4-6 hours recover to 90% capacity
  • Typical Backup Time

    Run time at 60w: 60 min

    Run time at 150w: 15 min

    Run time at 300w: 2 min

  • Interface
  • Communicate PortsNo
  • Protection
  • Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection
  • Indicator
  • Display

    LED indicator

    Working Mode (AC Mode): Solid green

    Charging Mode (DC Mode): Solid red

    Overloading Mode: Flashing yellow

  • Alarm

    Charging Mode (DC mode): Sounding every 8 seconds

    Low Battery: Sounding every second

    Overloading Mode: Sounding every 0.5 seconds

    Fault: Continuously sounding

  • General
  • Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
  • Operating Humidity30% to 90% (non-condensing)
  • Dimension274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
  • WeightApprox. 5.4 kg (11.9 lb)
