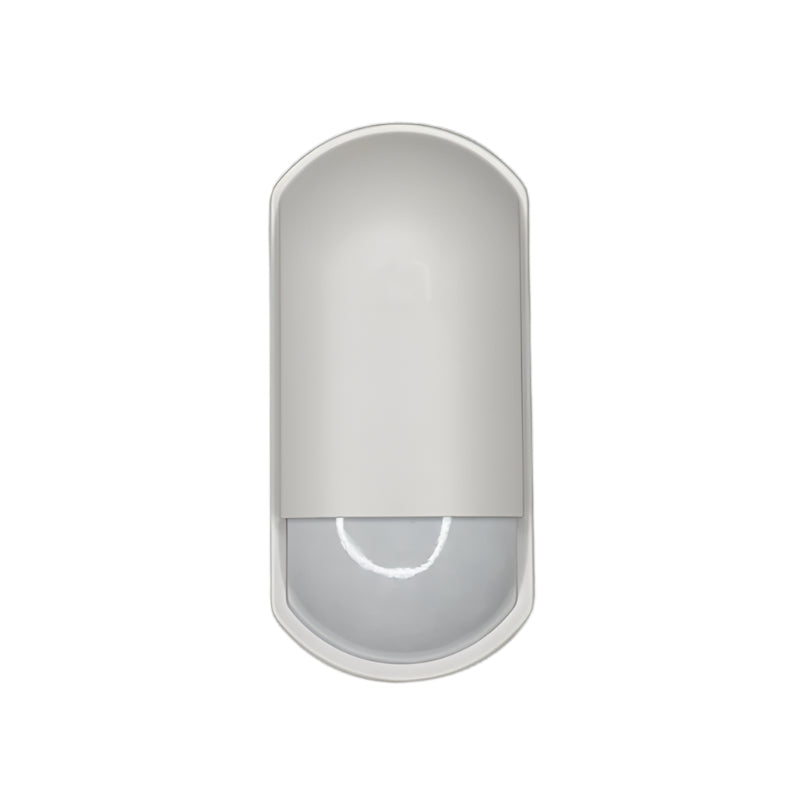

IDS Optex FLIPX FLX-S-ST Motion Sensor with 12m Range in White Colour

New economical infrared detector with Quad technology from OPTEX with a range of 12 x12m and a coverage angle of 85° (76 zones).

It features a new SMDA technology pyroelectric element for improved detection performance, a special temperature sensitivity compensation circuit and optimal animal rejection with sensitivity adjustment (low/mid/high).

By adjusting the spherical lens by 180°, the detection field is configured from wide to limited (curtain), with a detection radius of 2 mx18m and an opening (coverage angle) of just 5° (12 zones).

• Walktest capability with green LED indication.
• Wall or ceiling mount adjustment (not included).
• Installation height: 2m-3m.
• Operating voltage: 9.5-16VDC.
• Maximum consumption: 12mA.
• Dimensions: 130 x62 x56mm.
