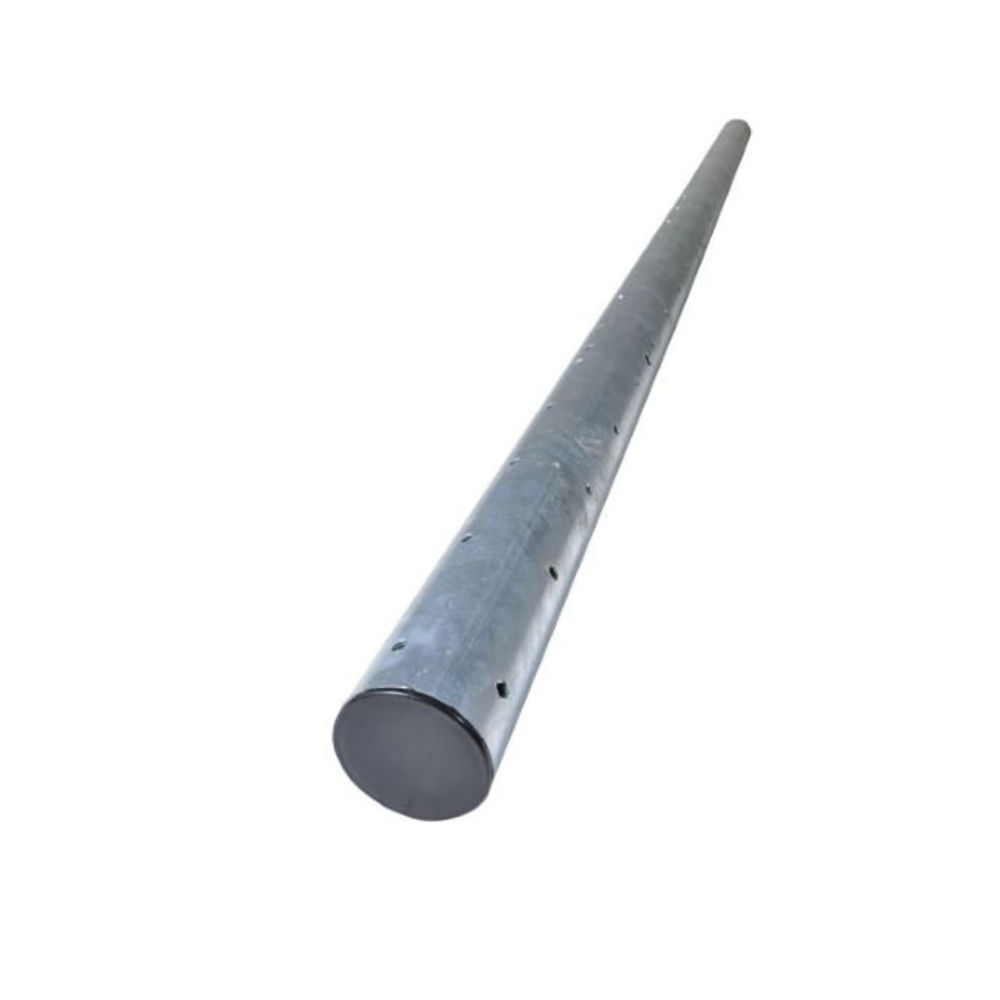

Nemtek Strainer post - end and corner 2.4M 95X2MM

The strainer posts can be used as corners or as corner and end straining posts in free-standing electric fences. The round posts are concreted into the ground and secured by 2 stays at 90 degree angles for corner applications. The round posts only require one stay in the direction of the wire tension in an end post application.

The round post are supplied with holes every 100mm to fit the Nemtek hot dip galvanised through hole hooks. These hooks are used in conjunction with the wire tensioners, strain insulators and springs to secure the electric fence wire and keep these wire under tension.

76mm diameter
• 20 wire, 2.0 meter high fence. (2.4 meter in total length).
• 24 wire, 2.4 meter high fence. (3.0 meter in total length).

95mm diameter
• 20 wire, 2.0 meter high fence. (2.4 meter in total length).
• 24 wire, 2.4 meter high fence. (3.0 meter in total length).

The associated stays:
• 2.4m in total length. Diameter of stay 38mm
• 2.4m in total length. Diameter of stay 50mm
• 3.0m in total length. Diameter of stay 50mm

Specifications

Finish: Hot dip galvanised
Posts: 3.0m x 76mm x 2mm
2.4m x 76mm x 2mm
3.0m x 95mm x 2mm

Stays: 2.4m x 38mm x 2mm
2.4m x 50mm x 2mm
3.0m x 48mm x 2mm
