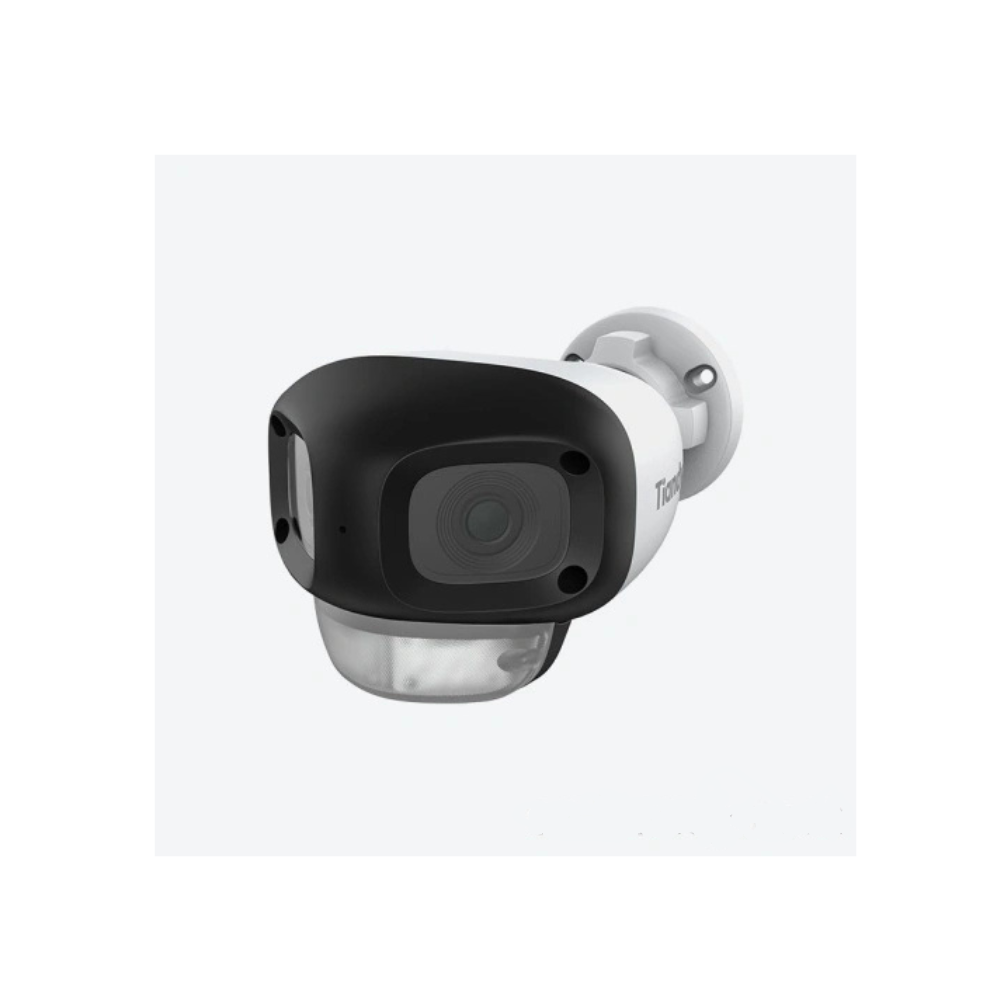

Tiandy TC-C345N 2ANA-28 Dual-2MP Panoramic Bullet Camera
Tiandy TC-C345N 2ANA-28 Dual-2MP Panoramic Bullet Camera
Couldn't load pickup availability
TC-C345N 2ANA-28
|
Camera |
|
|
Image Sensor |
1/3"CMOS |
|
Min. Illumination |
Color:0 .02Lux@(F1 .6,AGC ON),B/W:0Lux with IR |
|
Shutter Time |
1s-1/100000s |
|
Day&Night |
IR-cut filter with auto Switch (ICR) |
|
Smart IR |
Yes |
|
WDR |
DWDR |
|
S/N |
≥52dB |
|
Angle Adjustment |
0~360°(P); 0~80°(T); 0~360°(R) |
|
Lens |
|
|
Lens Type |
Fixed focal lens |
|
Focal Length |
2.8mm |
|
Lens Mount |
M12 |
|
Aperture Range |
F1.6 |
|
Aperture Type |
Fixed |
|
Field of View |
94.9°(H); 51 .8°(V); 110°(D) |
|
DORI Distance |
Detect:57.1m Observe:22.6m Recognize:11.4m Identify:5.7m |
|
Illuminator |
|
|
IR LEDs |
4 |
|
IR Distance |
Up to 50m |
|
Wavelength |
850nm |
|
White LEDs |
2 |
|
Whitelight Distance |
Up to 30m |
|
Compression Standard |
|
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H |
|
Video Bit Rate |
32k~4Mbps |
|
Audio Compression |
G.711A/G.711U |
|
Audio Sampling Rate |
8kHz/16kHz |
|
Image |
|
|
Max. Resolution |
2MP,1920x1080@25fps |
|
Main Stream |
PAL:25fps(1920x1080) |
|
Sub Stream |
PAL:25fps(704x576) |
|
BLC |
Yes |
|
HLC |
HLC |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
|
OSD |
Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters;16*16/32*32/48*48/adaptive; Lattice |
|
Privacy Mask |
4 black static areas |
|
Defog |
Yes |
|
Feature |
|
|
General Alarm |
Smart Alarm(human and vehicle detection) |
|
Exceptions Alarm |
IP Address Conflict |
|
Linkage Method |
Trigger Capture |
|
Network |
|
|
Protocols |
RTSP; HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast; Multicast |
|
System Compatibility |
P2P(Mutually exclusive with Profile G); onvif Profile S/T; SDK; CGI; Milestone |
|
Remote Connection |
≤2 |
|
Client |
Easy7 VMS |
|
Mobile Client |
EasyLive Plus |
|
Web |
IE10+; Firefox52+; Edge89+; Chrome57+ |
|
Interface |
|
|
Communication Interface |
1×RJ-45 (10/100 Base-T) |
|
Built-in Mic |
1×Built-in Mic |
|
General |
|
|
Web Client Language |
12 languages English/Spanish/Italian/Turkish/Russian/Thai/French/Polish/Arabic/Vietnamese/Portuguese/Japanese |
|
Operating Temperature |
-30℃~60℃(-22℉~140℉) |
|
Operating Humidity |
≤95%RH |
|
Storage Temperature |
-30℃~60℃(-22℉~140℉) |
|
Storage Humidity |
10%~95%RH(non-condensing) |
|
Power Supply |
DC12V±25%,Max. 6.5W; PoE:IEEE 802.3af,Max.8W |
|
Protection |
Surge4000V; ESD6000V; IP67 |
|
Boundary Dimensions |
193(L)114(W)90(H)mm |
|
Package Dimensions |
245(L)140(W)130(H)mm |
|
GrossWeight |
0.494kg |
