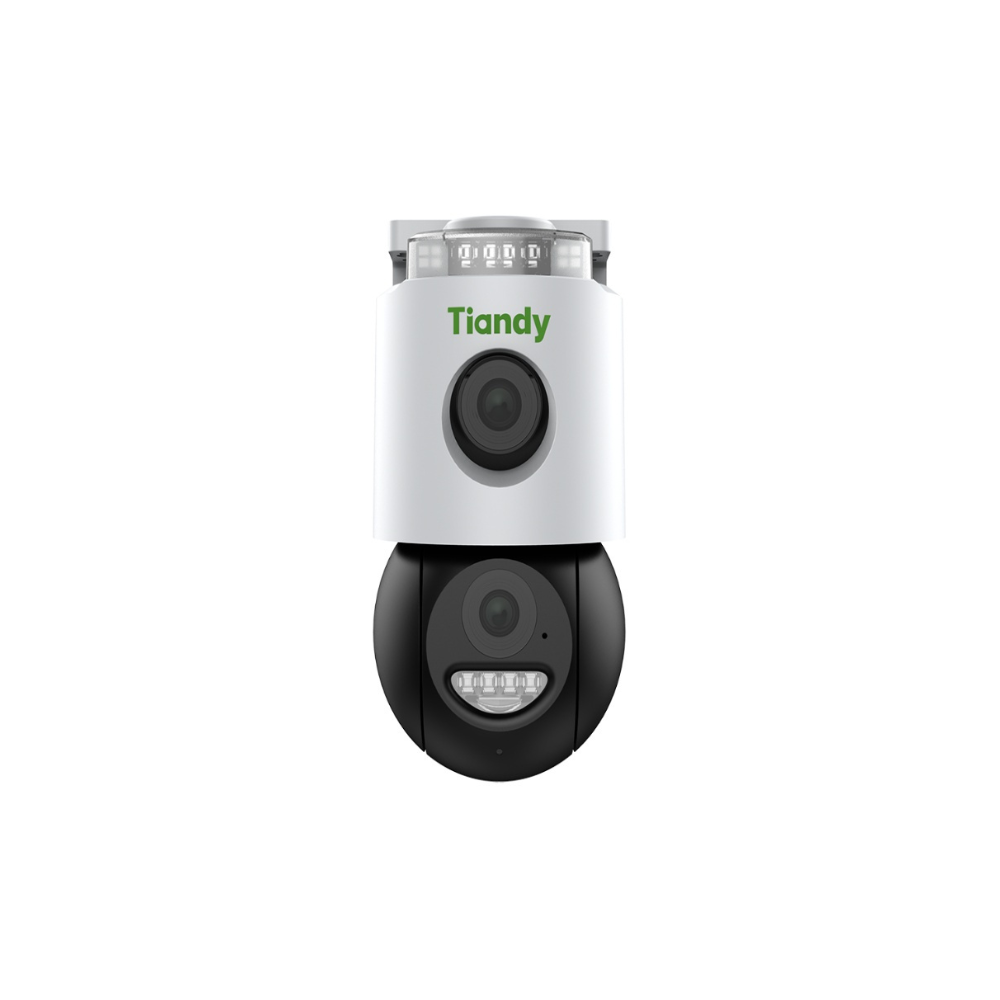

Tiandy TC-H363U 6MP (3+3)Fixed Color Maker 4G PT Camera Built-in Mic & Speaker
Tiandy TC-H363U 6MP (3+3)Fixed Color Maker 4G PT Camera Built-in Mic & Speaker
Couldn't load pickup availability
-
Plastic housing
-
Up to Panorama:3MP,2304×1296@15fps Detail:3MP,2304×1296@15fps
-
Built-in Mic, Built-in Speaker
-
S+265/H.265/H.264B/H.264M/H.264H
-
Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
-
Support microSD/microSDHC/microSDXC card,up to 256GB
-
Operating conditions -10℃~50℃(14℉~122℉), ≤95%RH
-
DC5V/2A
-
10400mAh battery capacity
-
Nano SIM card slot, Support 4G LTE FDD/LTE TDD
-

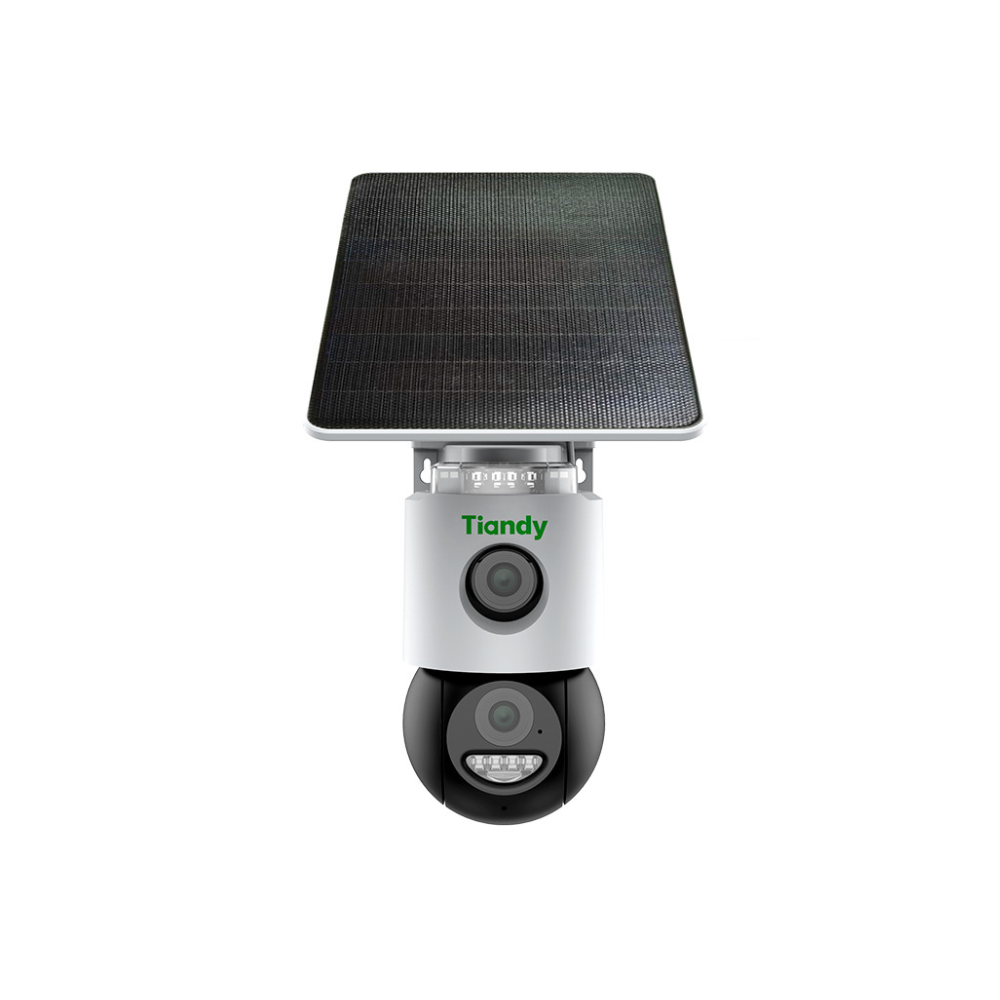

Solar panels included
-
IP65
|
Camera |
|
|
Image Sensor |
1/2.9"CMOS |
|
Min. Illumination |
Color:0.002Lux@(F1.0,AGC ON),B/W:0Lux with IR |
|
Shutter Time |
1s~1/100000s |
|
Day&Night |
NO IR-cut |
|
Smart IR |
Yes |
|
WDR |
DWDR |
|
S/N |
>50dB |
|
Angle Adjustment |
Panorama:-60~60°(P) Details:0~345°(P); Panorama:5~15° Details:-15~90° |
|
Lens |
|
|
Lens Type |
Fixed focal lens |
|
Focal Length |
4mm |
|
Lens Mount |
M12 |
|
Aperture Range |
F1.0 |
|
Aperture Type |
Fixed |
|
Field of View |
Panorama:81.8°(H) Detail:81.8°(H); Panorama:44.9°(V) Detail:44.9°(V); Panorama:94.9°(D) Detail:94.9°(D) |
|
DORI Distance |
Detect:57.14m Observe:22.68m Recognize:11.43m Identify:5.71m |
|
Illuminator |
|
|
White LEDs |
Panorama:4 Detail:4 |
|
Whitelight Distance |
20m |
|
Red and Blue Alarm Flash |
Yes |
|
Compression Standard |
|
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H |
|
Video Bit Rate |
32k~4Mbps |
|
Audio Compression |
G.711A/G.711U |
|
Audio Sampling Rate |
8kHz/16kHz |
|
Image |
|
|
Max. Resolution |
Panorama:3MP,2304×1296@15fps Detail:3MP,2304×1296@15fps |
|
Main Stream |
Panorama: PAL:15fps(2304×1296, 1920×1080, 1280×720, 704x576, 640x480) NTSC:15fps(2304×1296, 1920×1080, 1280×720, 704x576, 640x480) Detail: PAL:15fps(2304×1296, 1920×1080, 1280×720, 704x576, 640x480) NTSC:15fps(2304×1296, 1920×1080, 1280×720, 704x576, 640x480) |
|
Sub Stream |
Panorama: PAL:15fps(704×576, 704×288, 640×360, 352×288) NTSC:15fps(704×480, 704×240, 640×360, 352×240) Detail: PAL:15fps(704×576, 704×288, 640×360, 352×288) NTSC:15fps(704×480, 704×240, 640×360, 352×240) |
|
BLC |
Yes |
|
HLC |
Yes |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto |
|
OSD |
16*16/32*32/48*48 |
|
Feature |
|
|
Exceptions Alarm |
Disk Full; Disk R/W Error |
|
Linkage Method |
Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
|
Network |
|
|
Protocols |
TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
|
System Compatibility |
SDK |
|
Remote Connection |
≤2 |
|
Mobile Client |
EasyLive Plus |
|
Interface |
|
|
Built-in Mic |
Yes |
|
Built-in Speaker |
Yes |
|
Reset Button |
Yes |
|
On-board Storage |
Support microSD/microSDHC/microSDXC card,up to 256GB |
|
General |
|
|
Operating Temperature |
-10℃~50℃(14℉~122℉) |
|
Operating Humidity |
≤95%RH |
|
Storage Temperature |
-10℃~50℃(14℉~122℉) |
|
Storage Humidity |
10%~95%RH(non-condensing) |
|
Power Supply |
DC5V/2A |
|
Protection |
Surge500V; ESD6000V; IP65 |
|
Boundary Dimensions |
183(L)105W)102(H)mm |
|
Package Dimensions |
265(L)195(W)285(H)mm |
|
GrossWeight |
1.66kg |
